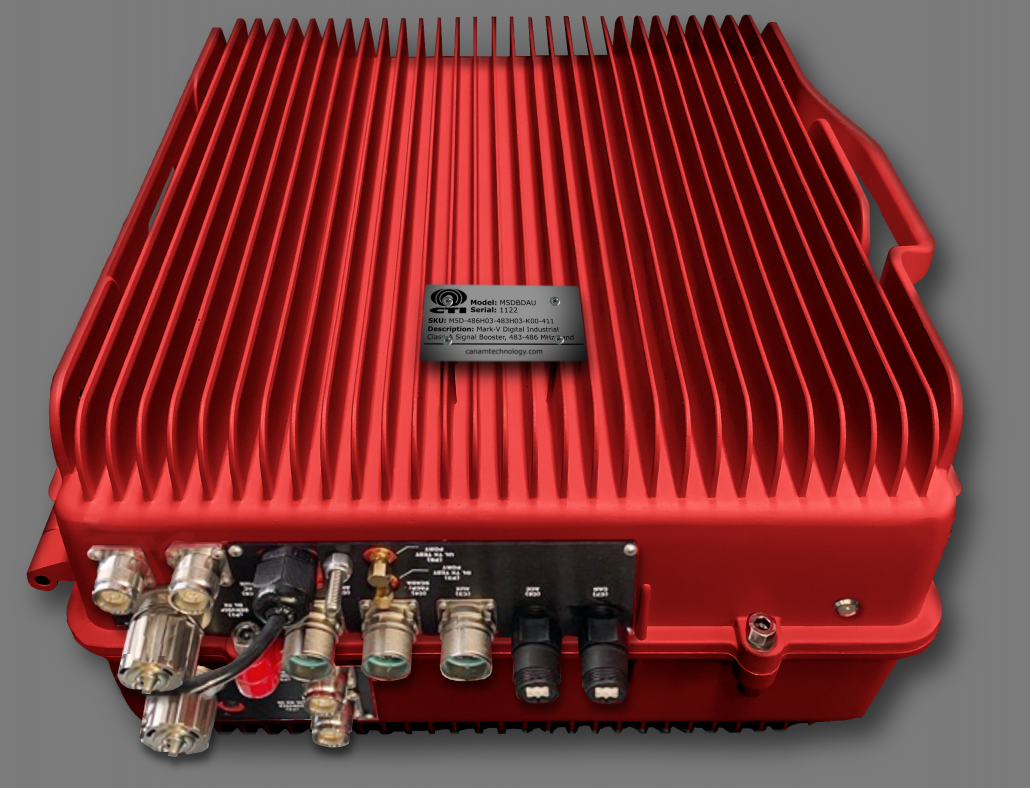

Mark IV ARCS
Auxiliary Radio Communication System
MARK-IV Incident Commander Series
FCC Class-A Industrial Signal Booster (Channelized BDA) with Frequency Shift Digital Repeater capability (full-duplex) Supports Analog and Digital channels like P25 ph1&2, DMR, NXDN & TETRA FCC part 90.219(d), NFPA72/1221/5000 and IFC 510.1
NYC In-Buildings/In-Tunnels FDNY+EMS ARCS Coverage
Enhanced FDNY Auxiliary Radio Communications System (ARCS), which can supply both FDNY local repeater channels plus EMS off-air rebroadcast in a single compact channelized BDA. Eliminates the need for dedicated base stations and very complex and bulky combiner system to integrate an EMS BDA with the FDNY ARCS traditional repeaters, which combiners are not built to support EMS.
Highlights & Applications
- 5W or 20W single-band or dual-band models for VHF, UHF, 700 and 800MHz PLMR.
- NFPA72/1221/5000 and IFC 510.1 fully compliant ��Emergency Responder Radio Communications Systems�� (ERRCS).
- Frequency Shift Repeater (FSR) and Path Selection perform as full-duplex digital repeater for local tactical analog conventional channels, while other channels are configured as Off-Air On-Channel Rebroadcast BDA.
- A single box delivers both FDNY Auxiliary Radio Communications System (ARCS) local repeater channels plus EMS off-air rebroadcast channelized BDA.
- Mutual-Aid iTAC local repeater plus Off-Air BDA for other wide-area channels.
- Mission Critical Public Safety Industrial Signal Booster, outstanding in the market.
- HIGHEST GAIN/HIGHEST COVERAGE IN THE MARKET: 130 dB max. gain per narrowband filter-window.
- Individual Automatic Gain Control (AGC) per filter-window.
- Individual Rx "squelch" per filter-window.
- Supports analog and digital modulation formats, including time- multiplexed formats, FDMA, TDMA, P25-Ph1/Ph2, TETRA, TETRAPOL, NXDN, Mototrbo DMR, etc.
- Fully network-able device with embedded webserver, SNMP Agent and Traps. Optional ModBus/Moscad with NYCT MCAS interface.
