Mark IV BDA
Bi-Directional Amplifier
Features
- 5W or 20W, Single or Dual Band models for VHF, UHF, 700 and 800 MHz PLMR.

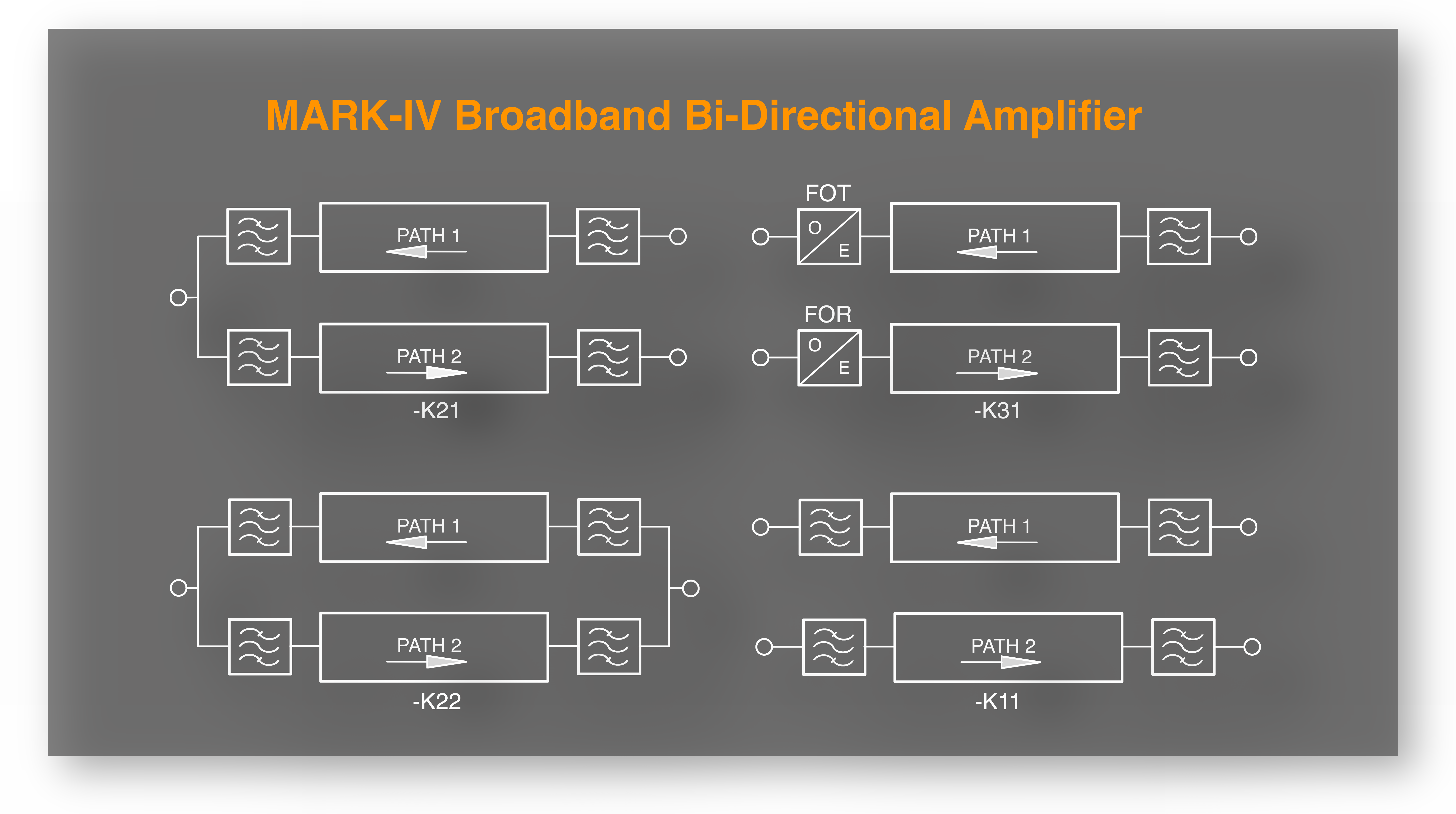

- Up to 2 bands. Accommodate 4 paths total (2 UL and 2 DL)
- Highest Gain/Highest Coverage in the market: 130 dB max. gain.
- Rx sensitivity could be as low as -115 dBm for >20 dBSINAD (DAQ3.4)
- Supports analog and digital modulation formats.
- Fully network-able device with embedded webserver, SNMP Agent.
- Optional RF-over-Fiber transceiver with a very wide dynamic range for transmission to greater distances using Single-mode Tx/Rx optical links.
- Network Management System (NMS) full suite option is available.
RF over FIBER
- FOD RF-over-Fiber links are ideal for long distance transmission of RF signals over single-mode fiber-optic cables.
Very low signal loss (less than 0.5dB/km)
High link reliability.
Wideband performance for VHF, UHF, 700 MHz & 800 MHz Two-way radio signal distribution.
Suitable for analog or digital signal modulation.
Comprehensive alarm/status monitoring.
DFB laser at 1310 ± 20nm (1550 nm/CWDM/DWDM options)
Network Management System (NMS)
- The Network Management System software monitors the health and controls the operation of active DAS radio equipment elements, such as Channelized RF Signals Boosters, Broadband BDAs, RF-over-Fiber links and RF switches, discrete digital I/O devices, and other equipment.
The NMS client Graphical User Interfaces (GUI) show detailed information including alarm indicators, equipment controls, and other management information.
