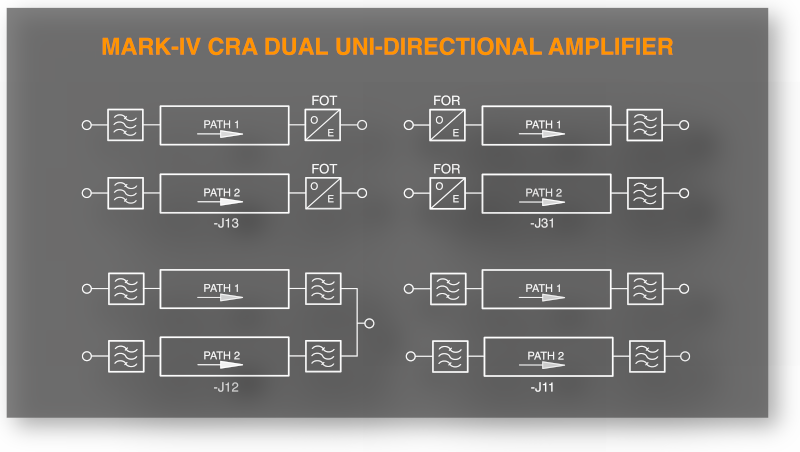

Mark IV
CRA
Channelized Repeater Amplifier
Features
- 5W or 20W, Single or Dual Band models for VHF, UHF, 700 and 800 MHz PLMR.
- Frequency Shift Digital Repeater capability (FSR) and Path Selection mode option.
- Supports Analog and Digital channels like P25 ph1&2, DMR, NXDN & TETRA
- Highest Gain/Highest Coverage in the market: 130 dB max. gain.
- Rx sensitivity could be as low as -115 dBm for >20 dBSINAD (DAQ3.4)
- Individual Automatic Gain Control (AGC) per filter-window.
- Rx "squelch" per filter-window reduces the uplink near-far Public Safety systems concern.
- Fully network-able device with embedded webserver, SNMP Agent.
- Network Management System (NMS) full suite option is available.

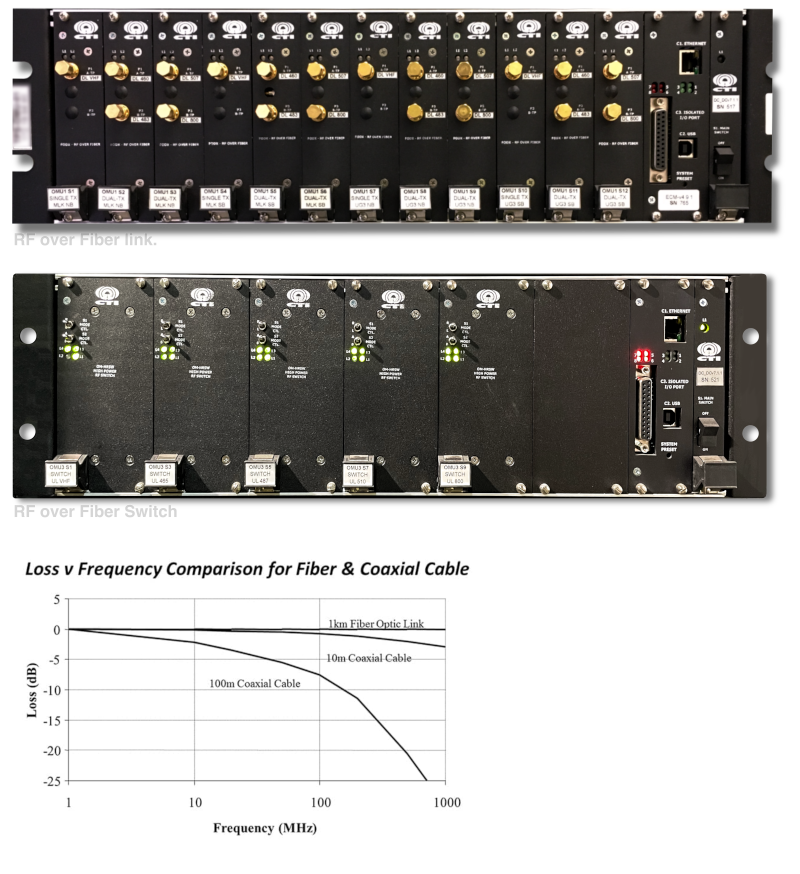

RF over FIBER
- FOD
RF-over-Fiber links are ideal for long distance transmission of RF signals over single-mode fiber-optic
cables.
Very low signal loss (less than 0.5dB/km)
High link reliability.
Wideband performance for VHF, UHF, 700 MHz & 800 MHz Two-way radio signal distribution.
Suitable for analog or digital signal modulation.
Comprehensive alarm/status monitoring.
DFB laser at 1310 ± 20nm (1550 nm/CWDM/DWDM options)

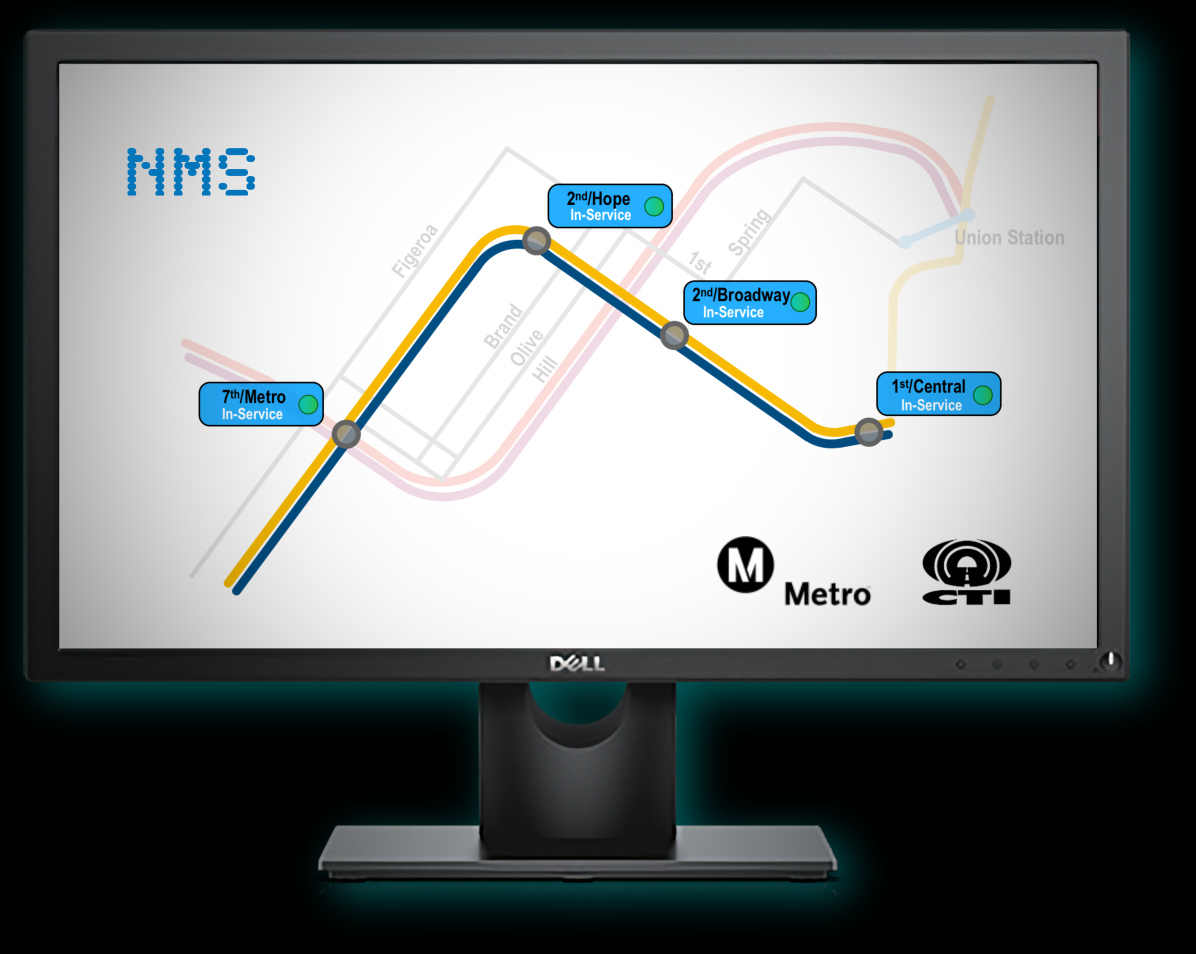

Network Management System (NMS)
- The
Network Management System software monitors the health and controls the operation of active DAS radio
equipment elements, such as Channelized RF Signals Boosters, Broadband BDAs, RF-over-Fiber links and RF
switches, discrete digital I/O devices, and other equipment.
The NMS client Graphical User Interfaces (GUI) show detailed information including alarm indicators, equipment controls, and other management information.
