Mark IV OCR
On Channel Repeater

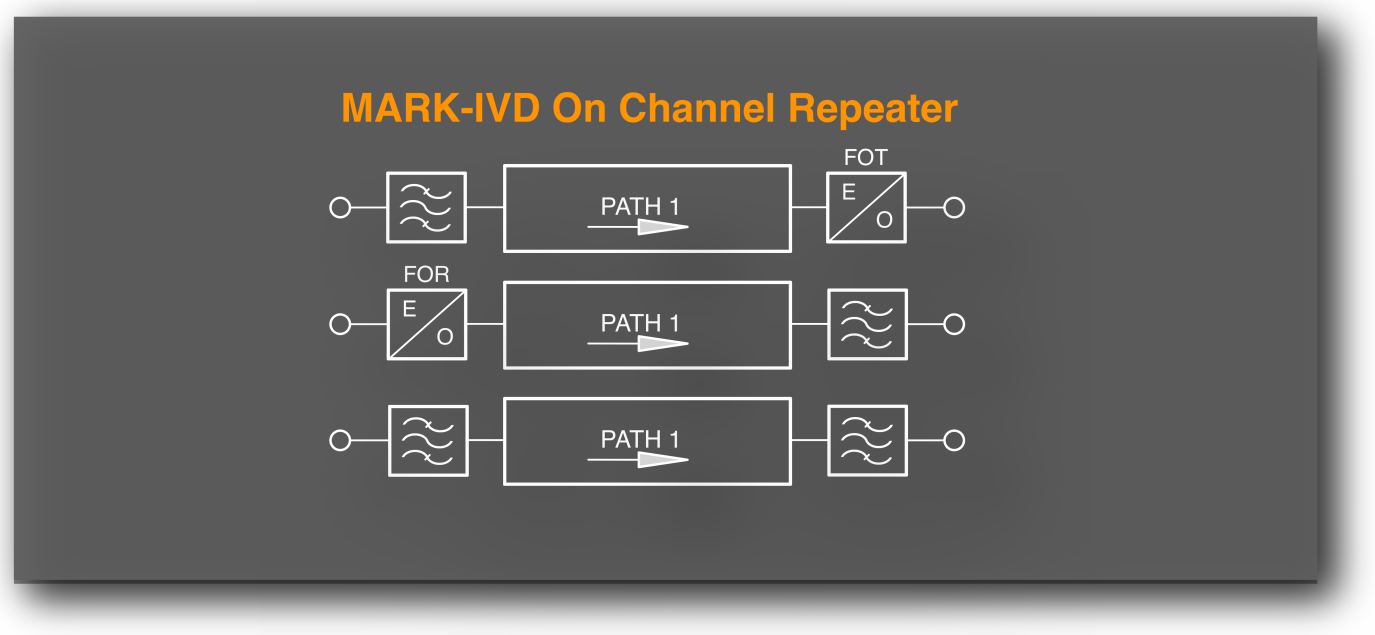

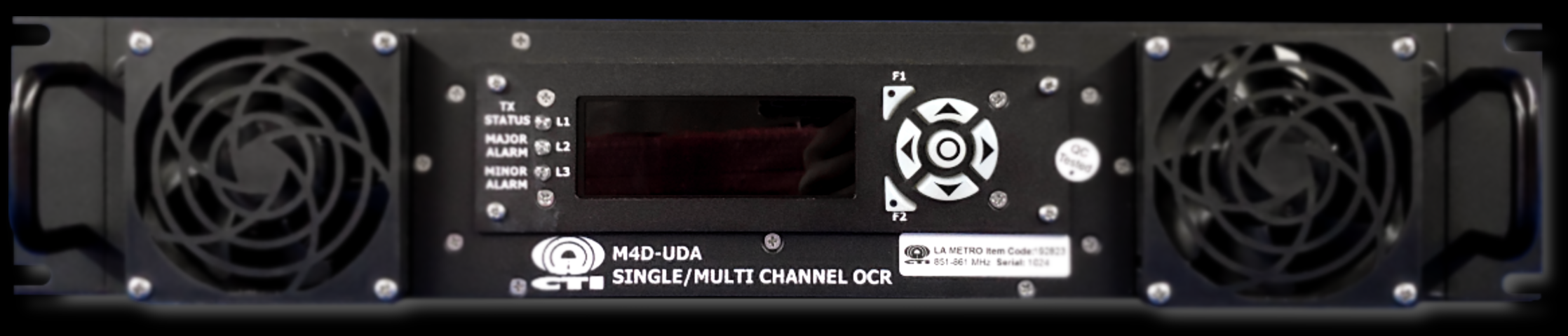

The Mark IV Digital OCR, On Channel Repeater FCC Class-A narrowband signal booster.
The MARK IV OCR is a Unidirectional Amplifier for single channel re-broadcast able to boost an uplink or downlink frecuency.
Features
- 5W or 20W Single Band models for VHF, UHF 700 and 800 Mhz PLMR
- Frequency Shift Repeater (FSR) mode option
- Narrowband Digital Filters.
- Per channel Digital Automatic Gain Control (AGC)
- Dual RF Output with independent break-in capability.
- Integrated with VAR3 Digital Recorder and Override Controller Software Application.
- Webserver for configuration via ethernet.
- Break-in (Override) or HAR audio received via network links.

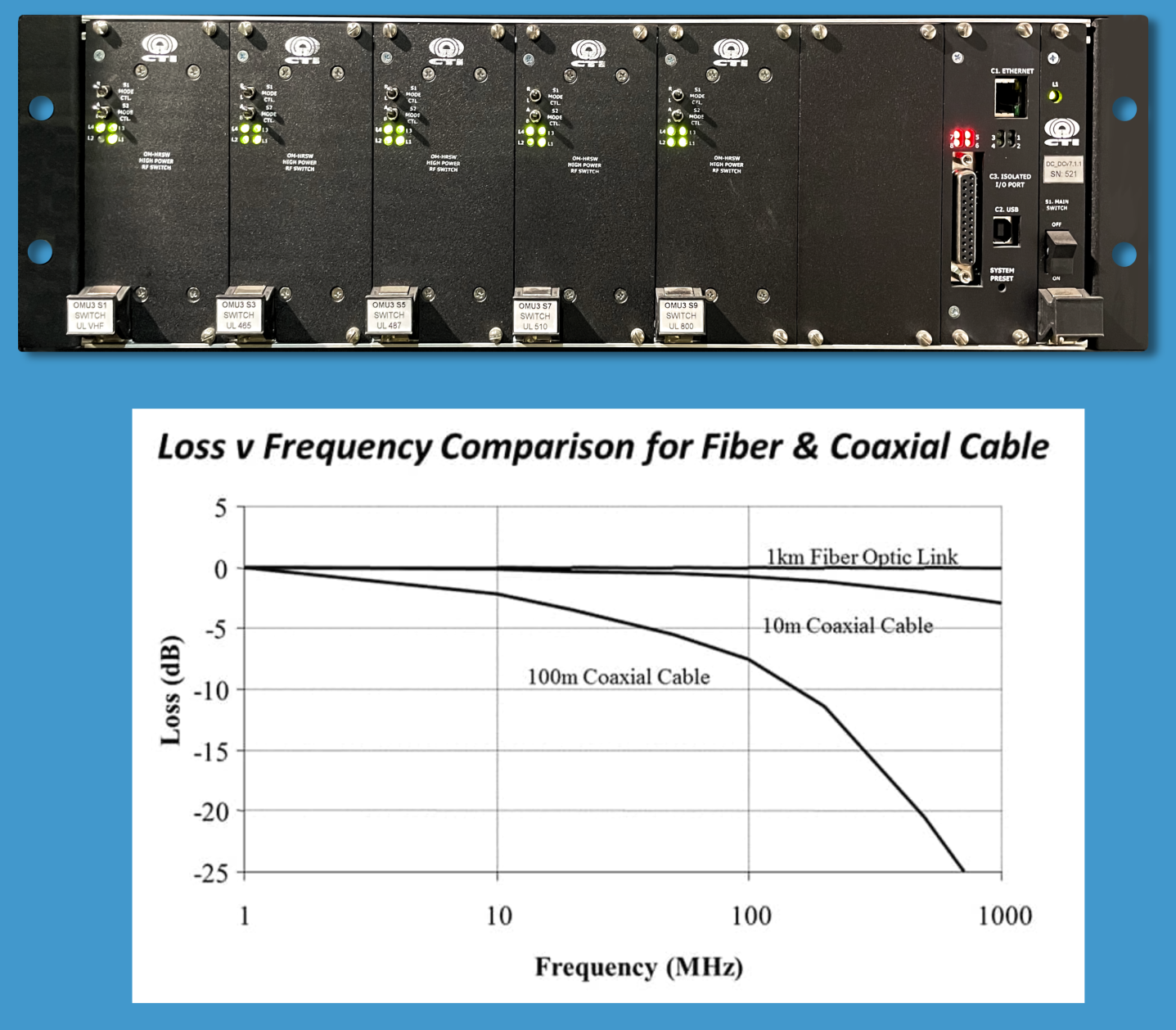

RV over FIBER
- FOD RF-over-Fiber links are ideal for long distance transmission of RF signals over single-mode fiber-optic cables.
Very low signal loss (less than 0.5dB/km)
High link reliability.
Wideband performance for VHF, UHF, 700 MHz & 800 MHz Two-way radio signal distribution.
Suitable for analog or digital signal modulation.
Comprehensive alarm/status monitoring.
DFB laser at 1310 ± 20nm (1550 nm/CWDM/DWDM options)
Network Management System
(NMS)
- The Network Management System software monitors the health and controls the operation of active DAS radio equipment elements, such as Channelized RF Signals Boosters, Broadband BDAs, RF-over-Fiber links and RF switches, discrete digital I/O devices, and other equipment.
The NMS client Graphical User Interfaces (GUI) show detailed information including alarm indicators, equipment controls, and other management information.
